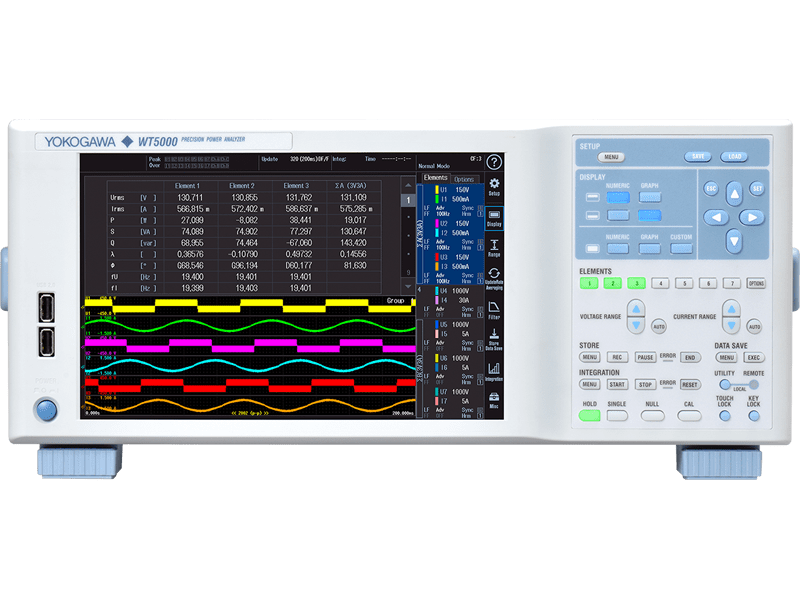

WT5000 Precision Power Analyzer

Experience unmatched precision with the Yokogawa WT5000—the world’s leading precision power analyzer. Engineered for the most demanding electrical and mechanical power and efficiency testing, the WT5000 offers multi-channel measurements, advanced harmonic analysis, and intuitive operation through its user-friendly software and responsive touchscreen. With seven swappable input elements, four motor channels, and approval for SPEC Power® and IEC standards, the WT5000 is the ultimate tool for high-accuracy power measurements.

หมวดหมู่: Product, Power Meter แบรนด์: YOKOGAWA

คำอธิบาย

Reliable Today, Ready for Tomorrow

Make measurements you can trust with a guaranteed accuracy of *0.03%
10MS/s, 1MHz power bandwidth, 18 bit resolution enabled by Yokogawa isoPRO™ fiber optic isolation technology
Simultaneously analyze 7 phases with one chassis, producing over 1000 power parameters real-time
Precision current measurement guaranteed by innovative symmetric coaxial shunt design
*basic power accuracy
Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis

Innovate with Precision, Flexibility and Confidence

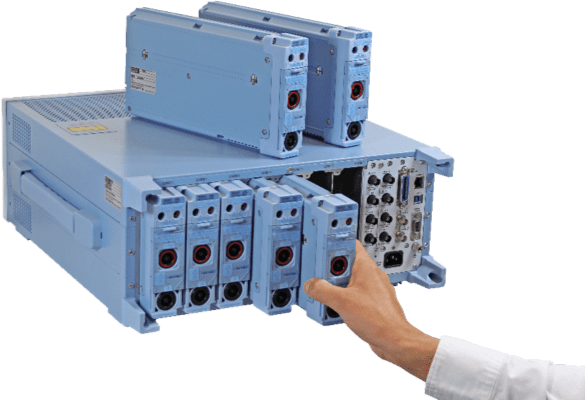

Modular architecture with 7 user swappable and reconfigurable input elements
High-accuracy element, built-in DC power supply, enables both easy wiring and reliable high-precision, large-current measurements
Up to 10ms data update, up to 50ms data update when using data streaming
Follows frequency fluctuations in input signals by auto update mode
Synchronize multiple chassis for large multi-phase systems
For motors and generators up to 4 speed and torque inputs** can be used measuring total system efficiency
Isolate and measure harmonic losses with configurable advanced filtering for simultaneous wideband and harmonic power analysis
**can be configured as auxiliary inputs
Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis

Precision Made Easy

Highly responsive 10.1 inch electrostatic capacitive touch screen
Intuitive and easy menus to connect, configure, measure and record
Modular interconnect design putting safety first

Unmatched Accuracy

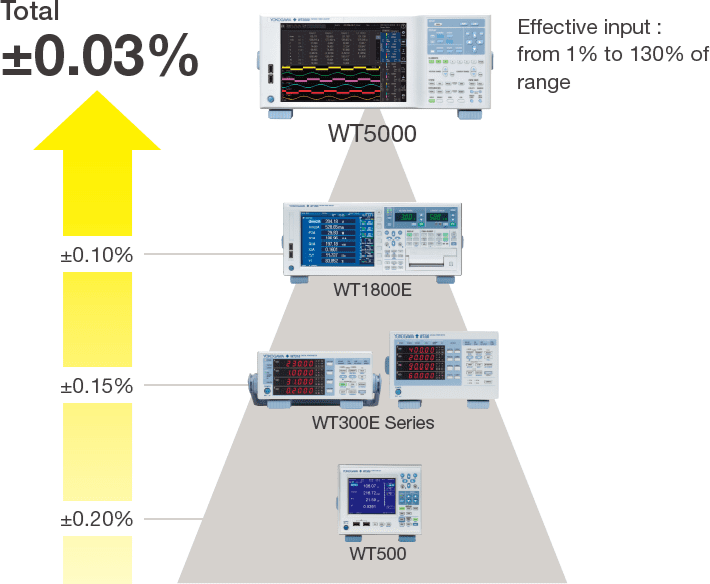

The WT5000 is the world’s most accurate precision power analyzer with a basic power accuracy of ±0.03%. Its accuracy specifications are guaranteed from 1% to 130% of the selected voltage and current ranges. With minimum influence of low power factor (0.02% of apparent power) the unit is also accurate at large phase shifts and frequencies.

AC power accuracy: 0.01% of reading + 0.02% of range
DC power accuracy: 0.02% of reading + 0.05% of range
10 MS/s 18 bit ADC
