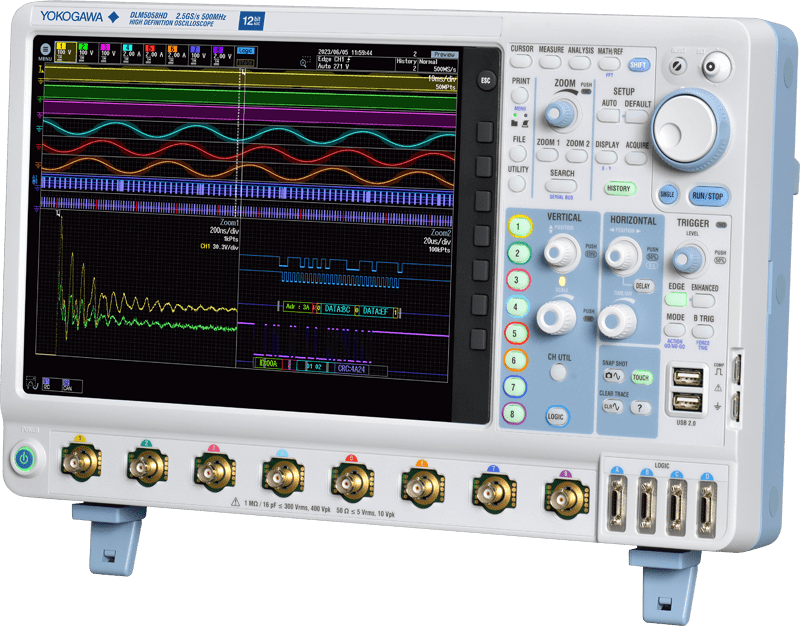

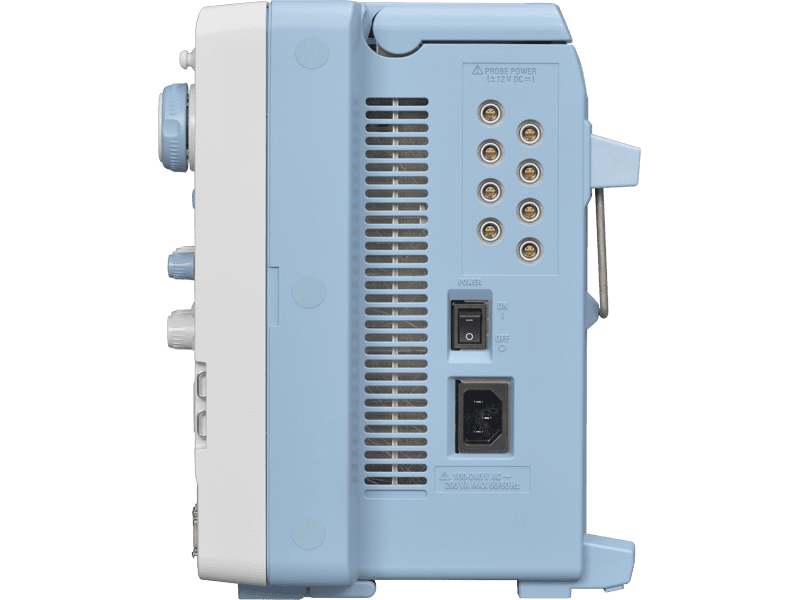

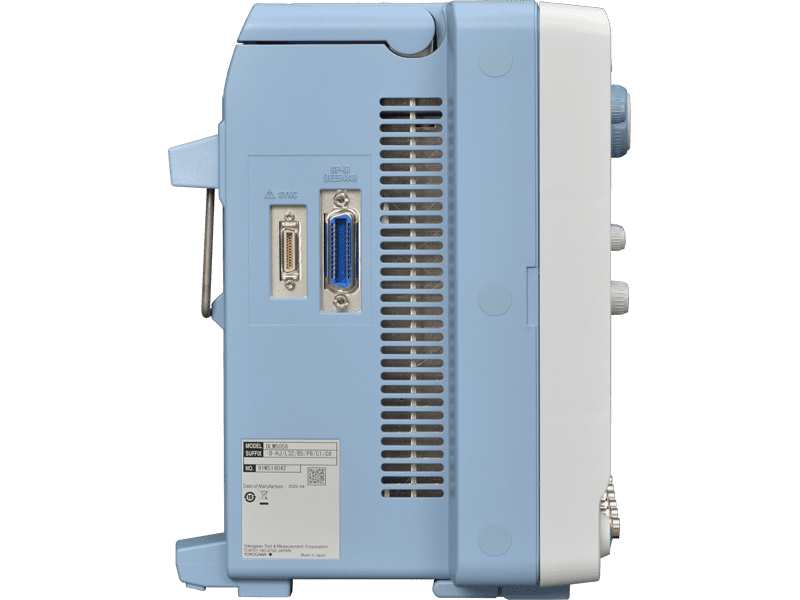

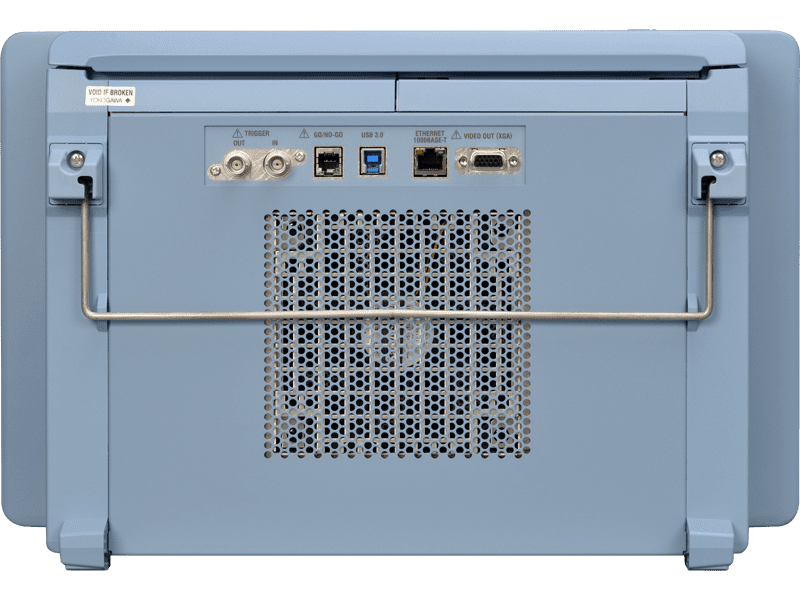

DLM5000HD High-Definition Oscilloscope

The DLM5000HD Series High-Definition Oscilloscope is the latest addition to the Yokogawa Test&Measurement oscilloscope line-up that takes you beyond eight channels.

รองรับการวัดสัญญาณความเร็วสูง หน้าจอคมชัด ใช้งานง่าย เหมาะสำหรับวิศวกรและห้องแล็บอุตสาหกรรม

Precision in Every Detail

Adaptability is key in the development of high-performance and intelligent power semiconductor technologies and mechatronics in modern electric vehicles, motor controls, and energy efficient electronic designs. With up to 16 bits high resolution, best-in-class startup speed, the ability to support measurements up to 16 channels, high noise immunity for harsh environments, and more, the four-to-eight channel DLM5000HD Series enables easy touch navigation through a wealth of analysis features.

คำอธิบาย

Setting a New Standard for High Definition

4 or 8 analog channels, 16-bit logic + optional additional 16-bit logic
Bandwidth: 350 or 500 MHz
Sample Rate: up to 2.5 GS/s
Vertical resolution: 12 bit
High resolution mode: up to 16 bit
Measurement memory: up to 1 GigaPoints
History waveforms: up to 200,000 triggers
Simultaneous Multi-Channel Measurements: Up to 32 bit logic + 8 channels
- Up to 16 channels with two connected DLM5000HDs via DLMsync
- IEEE1588 Synchronous Support
Highly-Responsive, Intuitive 12.1in Touchscreen
- with Traditional Oscilloscope Control Panel
Superior Noise Immunity
Logic and Serial Bus Analysis
Additional Math Channels
Extensive Voltage Ranges
Compact, Light, Portable

Key Specifications

12 to 16-Bit High Resolution

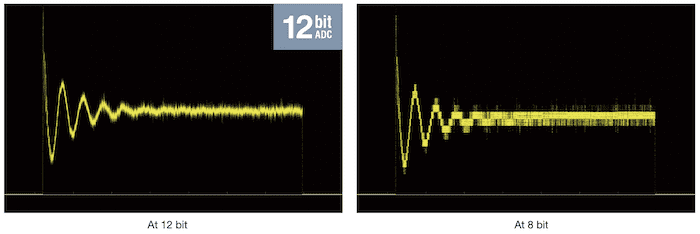

Compared to traditional 8-bit oscilloscopes, the DLM5000HD measures 12-bit vertical resolution all the time. With its high definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.

Multi-Channel Measurement Up to 16 Channels
A single DLM5000HD measures up to eight channels simultaneously, while connecting two instruments extends synchronous measurement up to 16 channels to enable evaluations via a single test.

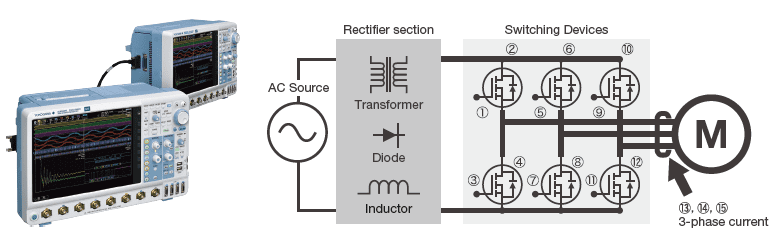

Multi-Channel_Measurement_to_16_Channels_DLM5000HD_Oscilloscope_Yokogawa_Test_Measurement

Wide Bandwidth Measurement
Momentary phenomena such as overshoot at the rise of a high-speed inverter cannot be verified with low bandwidth oscilloscopes. The DLM5000HD combines a wide bandwidth of up to 500 MHz with a sample rate up to 2.5 GS/s.

Up to 2.5 GS/s, Up to 1 G Points Memory
The DLM5000HD has a memory capacity up to 500 M points in single mode and 125 M points in repeat mode for waveform capture that allows you to observe waveforms with very few omissions when all channels are used.

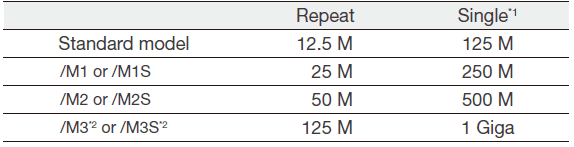

Maximum_Record_Lengths_Points_DLM5000HD_Oscilloscope_Yokogawa_Test_Measurement

Large Selection of Triggers
The DLM5000HD’s extensive triggers can trigger on feature points to extract waveforms of interest and store them in the history memory. Display a list of history waveforms to see intervals between triggers or line up several waveforms to identify trends around feature points to determine how often or under what conditions a characteristic waveform occurs.

Stable and Reliable Purpose-Built System

Purpose_Built_System_DLM5000HD_Mixed_Signal_Oscilloscope_Yokogawa_Test_Measurement

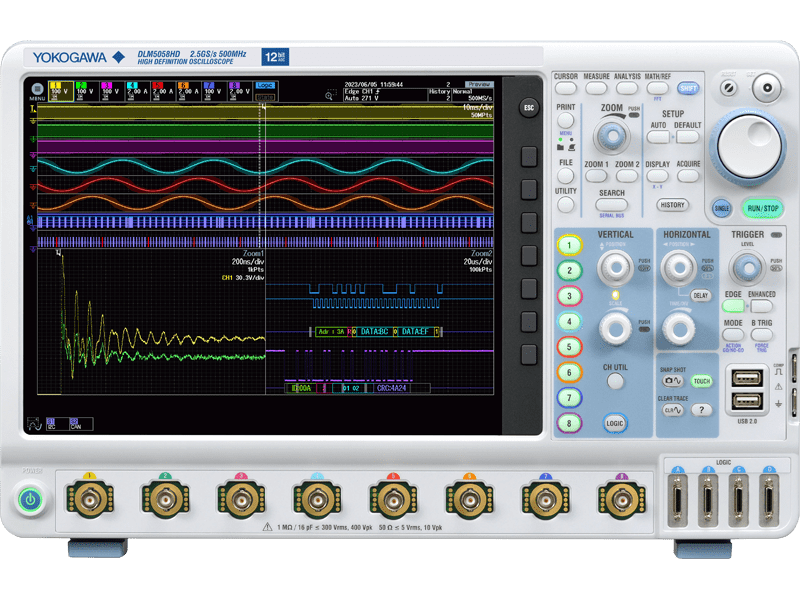

12.1in Intuitive, Highly-Responsive Touchscreen
The large 12.1in intuitive and highly-responsive touchscreen is useful for observing analog signals in detail and displaying information for debugging like parameters, zoom, XY display, and FFT analysis results.

Compact, Light Weight, and Portable
Despite boasting a large screen with multichannel inputs, the DLM5000HD has a portable, thin, and lightweight design.

Quick Startup
The DLM5000HD starts up from OFF to waveform display in twelve seconds for a quicker start on projects.

Link with a PC

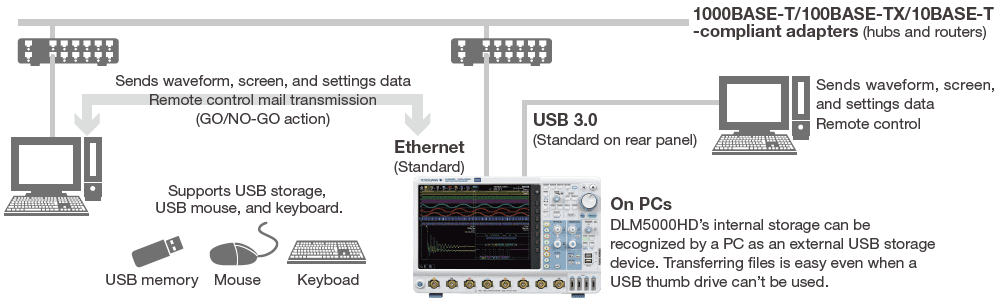

It is often more effective and efficient to perform analysis using a PC because of its high CPU processing power. This can be accomplished with the DLM5000HD through integration with the IS8000 Integrated Test and Measurement Software Platform for multiple waveform and power measurement results and powerful analysis capabilities.
