DLM3000HD Series High-Definition Oscilloscope

Ideal for Everyday Use by Engineers

Adaptability is key in the development of high-performance and intelligent power semiconductor technologies and mechatronics in modern electric vehicles, motor controls, and energy efficient electronic designs. With up to 16 bits high resolution, best-in-class startup speed, and high noise immunity this four-channel oscilloscope provides an extensive set of analysis features in a compact design.

คำอธิบาย

Setting a New Standard for High Definition

4 analog channels, 8-bit logic
Bandwidth: 350 or 500 MHz
Sample Rate: up to 2.5 GS/s
Vertical resolution: 12-bit
High resolution mode: up to 16-bit
Measurement memory: up to 1 GigaPoints
History waveforms: up to 200,000 triggers
Simultaneous Multi-Channel Measurements: Up to 16-bit logic + 6 channels

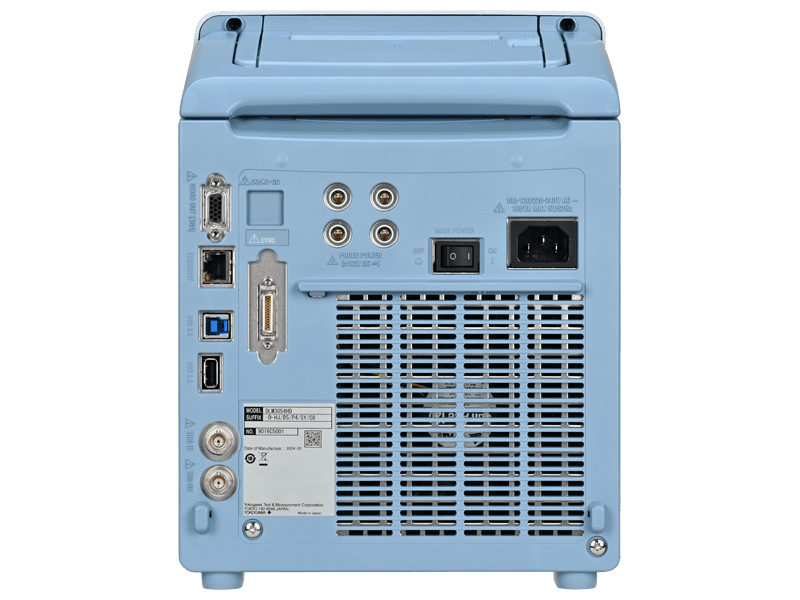

- Up to 8 channels with two connected DLM3000HDs via DLMsync
- IEEE1588 Synchronous Support

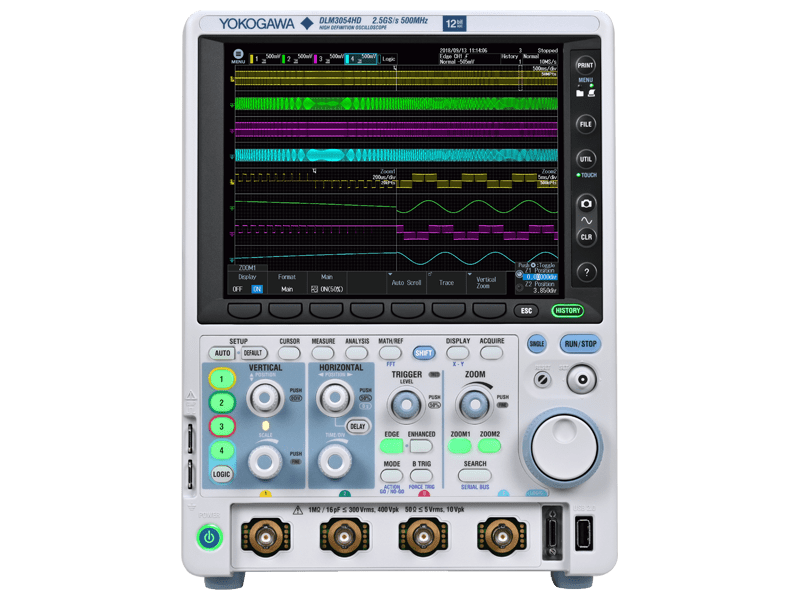

Highly-Responsive, Intuitive 8.4in Touchscreen
- with Traditional Oscilloscope Control Panel
Superior Noise Immunity
Logic and Serial Bus Analysis
Additional Math Channels
Extensive Voltage Ranges
Compact, Light, Portable

Key Specifications

12- to 16-Bit High Resolution
Compared to traditional 8-bit oscilloscopes, the DLM3000HD measures 12-bit vertical resolution all the time. With its high-definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.

12-Bit_Resolution_DLM3000HD_High_Definition_Oscilloscope_Yokogawa_Test_Measurement

Multi-Channel Measurement Up to Eight Channels
A single DLM3000HD measures up to four channels simultaneously, while connecting two instruments extends synchronous measurement up to eight channels to enable evaluations via a single test.

Wide Bandwidth Measurement
Momentary phenomena such as overshoot at the rise of a high-speed inverter cannot be verified with low bandwidth oscilloscopes. The DLM3000HD combines a wide bandwidth of up to 500 MHz with a sample rate up to 2.5 GS/s.

Up to 2.5 GS/s (Four Channels at Once), Up to 1 G Points Memory

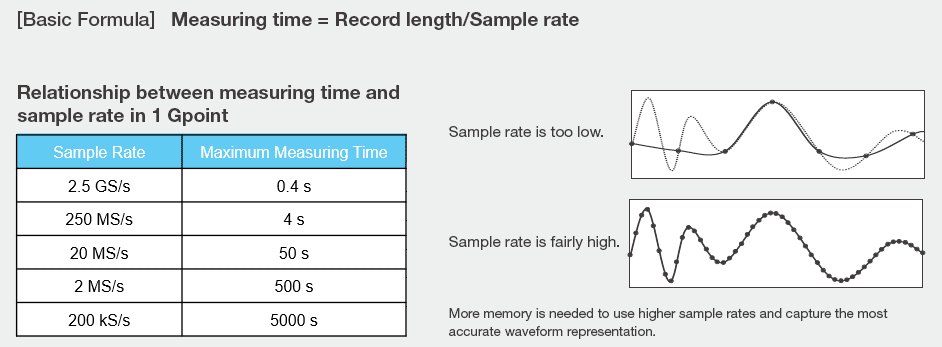

The DLM3000HD has a memory that can capture up to 1 G points (odd channels only) in a single waveform and up to 125 M points in a repetitive waveform acquisition to enable long time measurement without reducing the sample rate.

1GPoint_Memory_DLM3000HD_High-Definition_Mixed_Signal_Oscilloscope_Yokogawa_Test_Measurement

Intuitive and Highly-Responsive Touchscreen
The 8.4in intuitive and highly-responsive touchscreen is useful for observing analog signals in detail and displaying information for debugging like parameters, zoom, XY display, and FFT analysis results.

Quick Startup
The DLM3000HD starts up from OFF to waveform display in twelve seconds for a quicker start on projects.

Link with a PC
It is often more effective and efficient to perform analysis using a PC because of its high CPU processing power. This can be accomplished with the DLM3000HD through integration with the IS8000 Integrated Test and Measurement Software Platform for multiple waveform and power measurement results and powerful analysis capabilities.
